Project B-438
**Not a public offer! The website presents artistic visualization of products, which may differ from the manufacturer’s design documentation. Product prices are indicated as of January 1, 2024 and may vary depending on the product configuration. Check with the seller for current prices.- Product Code: B-438
- Availability: In Stock
Get a consultation
Project Details
Total area: 774.90 m2
Technology: Timber
Wall thickness: 80 mm
Project B-438
A set of parts for a prefabricated house made of glued profiled timber under the code name "B-438".

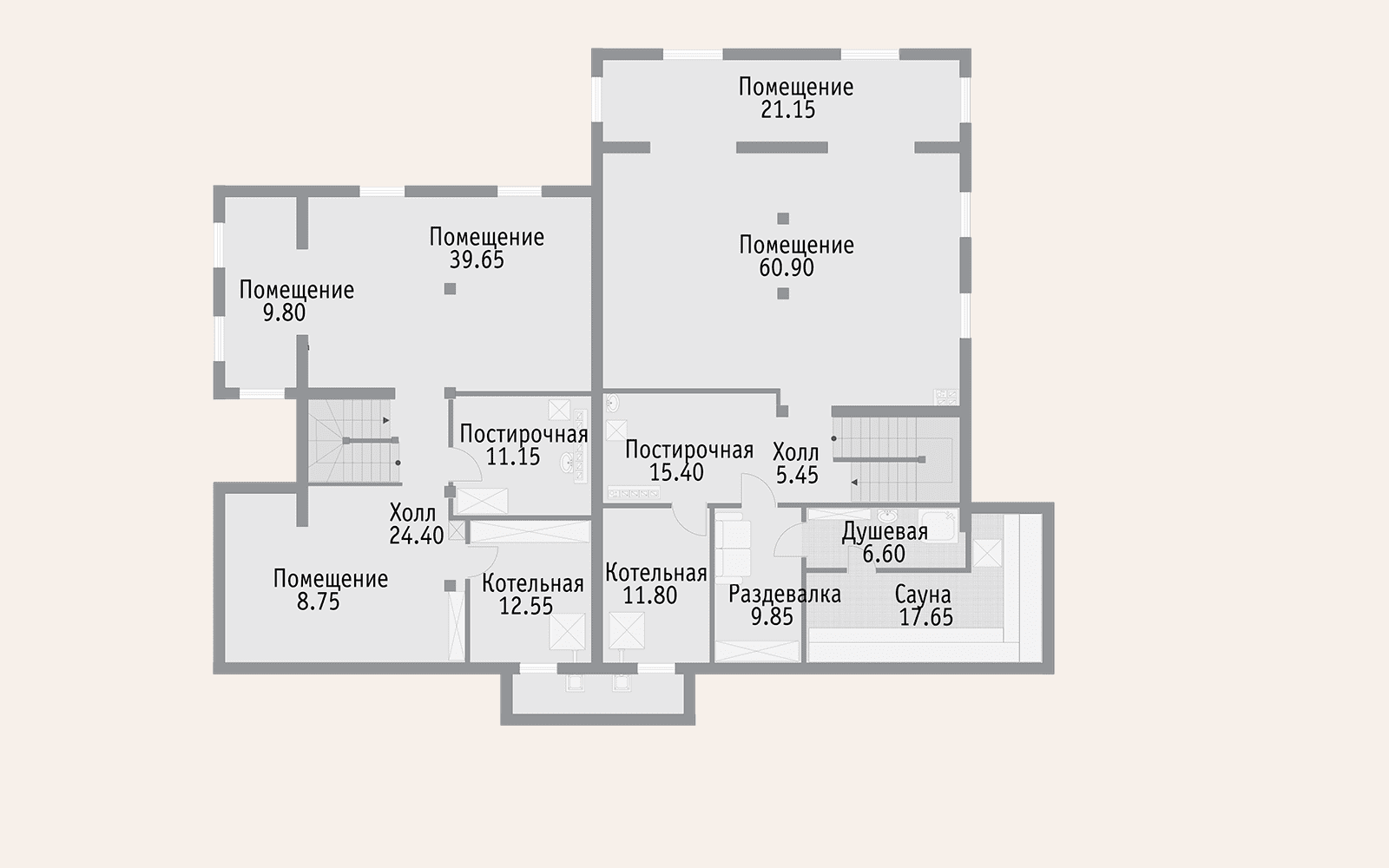

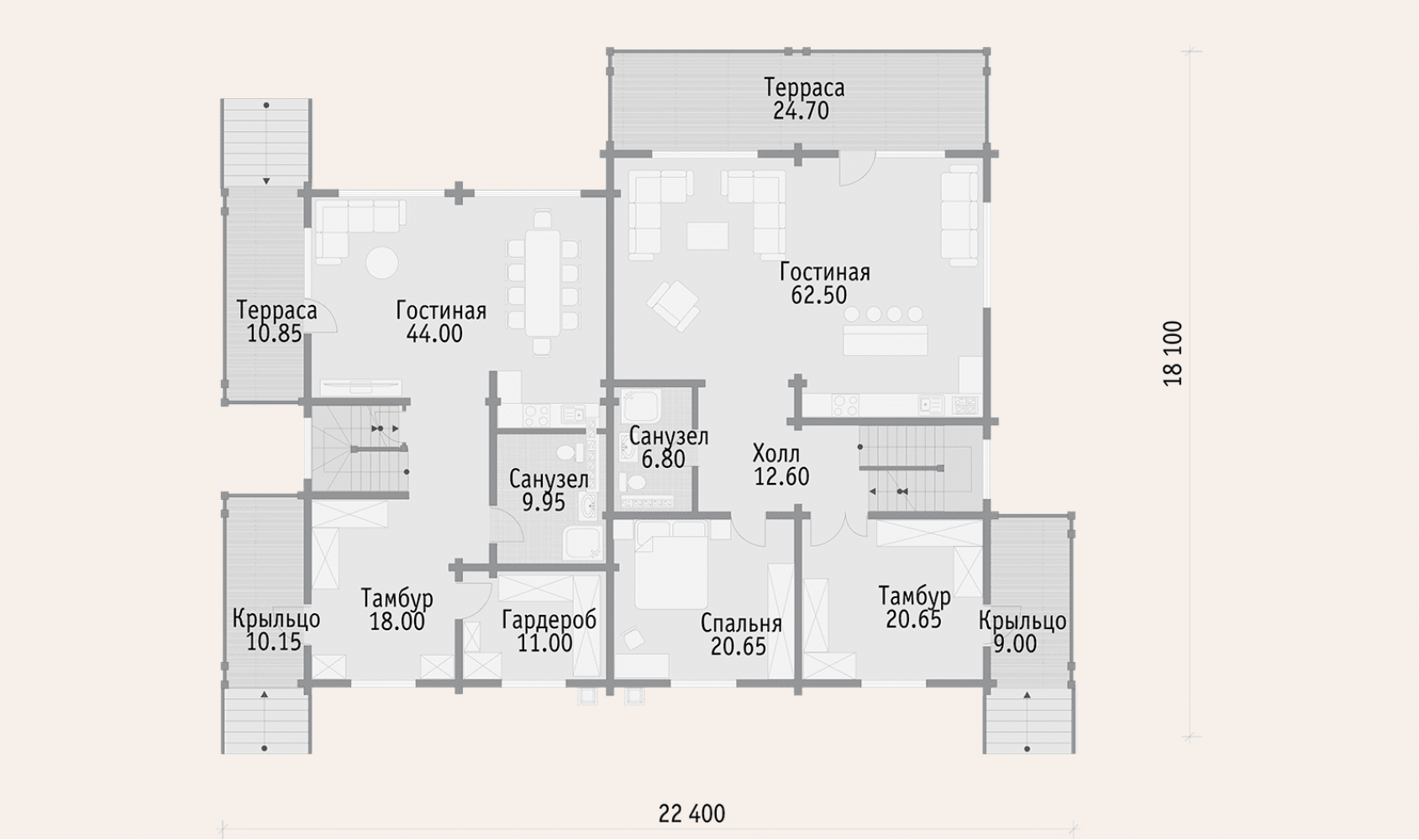

The project consists of a three-storey house with the following characteristics:
1st floor 2nd floor
|
Terrace |
24.70 m2 |
The room |
21.15 m2 |
|
Living room |
62.50 m2 |
The room |
60.90 m2 |
|
Hall |
12.60 m2 |
Hall |
5,45 m2 |
|
Bathroom |
6.80 m2 |
Laundry room |
15.40 m2 |
|
Vestibule |
20.65 m2 |
Shower room |
6.60 m2 |
|
The porch |
9.00 m2 |
Sauna |
17.65 m2 |
|
Bedroom |
20.65 m2 |
Locker room |
34.08 m2 |
|
Bathroom |
9.95 m2 |
Boiler room |
34.08 m2 |
|
Wardrobe |
11.00 m2 |
The room |
39.65 m2 |
|
Vestibule |
18.00 m2 |
The room |
9.80 m2 |
|
The porch |
10.15 m2 |
Laundry room |
11.15 m2 |
|
Living room |
44.00 m2 |
Boiler room |
12.55 m2 |
|
Terrace |
10.85 m2 |
Hall |
24.40 m2 |
|
The room |
8,75 m2 |
Wall kit:
• Laminated timber, profiled with cups according to the project 180 mm high, 200 mm thick with protective treatment of the ends with the composition of «Teknos JRM», with cutting grooves for the installation of casing boxes. The breed of the material is Spruce.
Shaft sealer for corner joints of timber – Rave Line, Finland;
• The embedded board is dry planed 41*200 mm. Key for installation of windows and doors – dry planed bar 30*40 mm;
• Glued posts 200*200 mm.
Floor structures (Calculation of wooden structures is made for the type of support surface - a tape monolithic foundation):
Ceilings (floor beams, frontal board);
• Cranial bar– sawn bar 40*50 mm; black floor board – sawn board 16 mm.
Coating designs:
• Rafter system (rafter legs, puffs, purlins, short linings);
• Counter-lattice – bar, planed 40*50 mm;
• Beacon rail – sawn bar 25*50 mm. Black ceiling board – sawn board 16 mm;
The crate is a sawn 25 mm board.
Structures of internal frames:
Internal frame partitions (racks, lintels, strapping – calibrated board);
• Timber imitation board – dry profile 19*177 mm.
Exterior finishing materials:
• Cornice board – planed board 20*120 mm. External cladding for filing eaves overhangs – planed board 20*120 mm;
• Exterior trim for windows and doors – planed board 20*120 mm;
The casing board is glued 42*200 mm.
Fasteners:
• Wall mounting kit (anchors, capercaillie, adjusting screws, embedded parts, shrinkage compensators);
• A set of floor fasteners (beam supports);
• A set of cover fasteners (sliding supports, bolts, studs).
