Project Details
Total area: 236.50 m2
Technology: Timber
Wall thickness: 80 mm
Project B-160

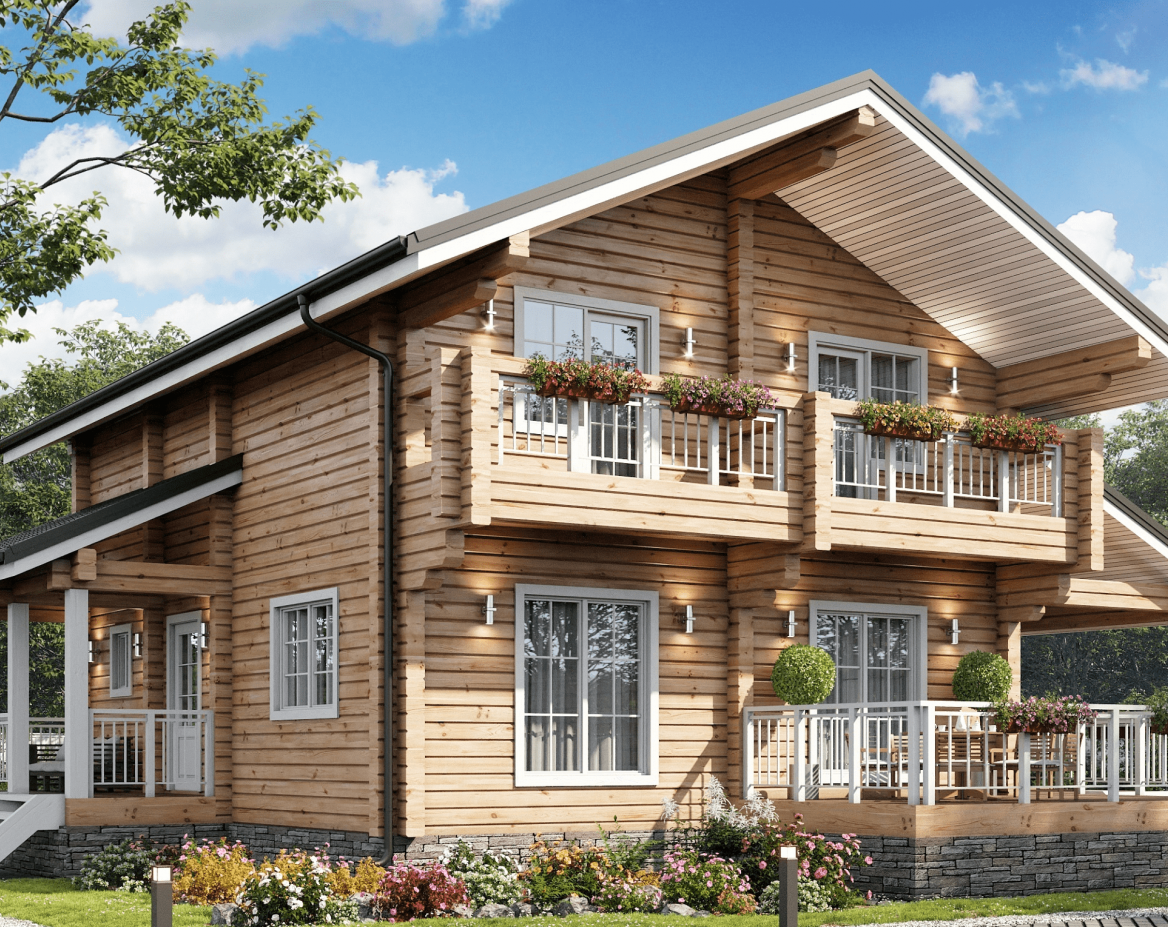

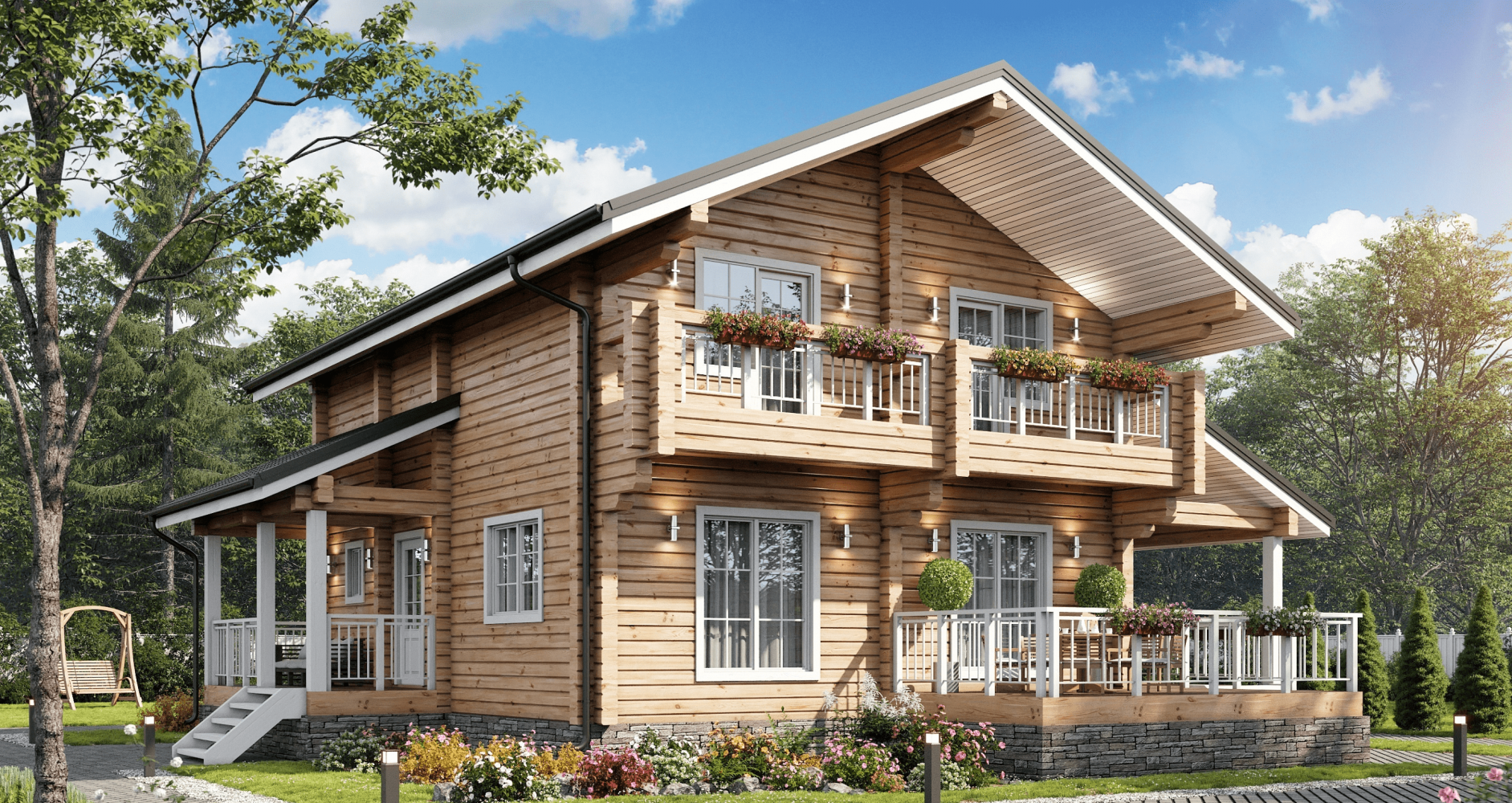

A set of parts for a prefabricated house made of glued profiled timber under the code name "B-160".
The project consists of a three-storey house with the following characteristics:

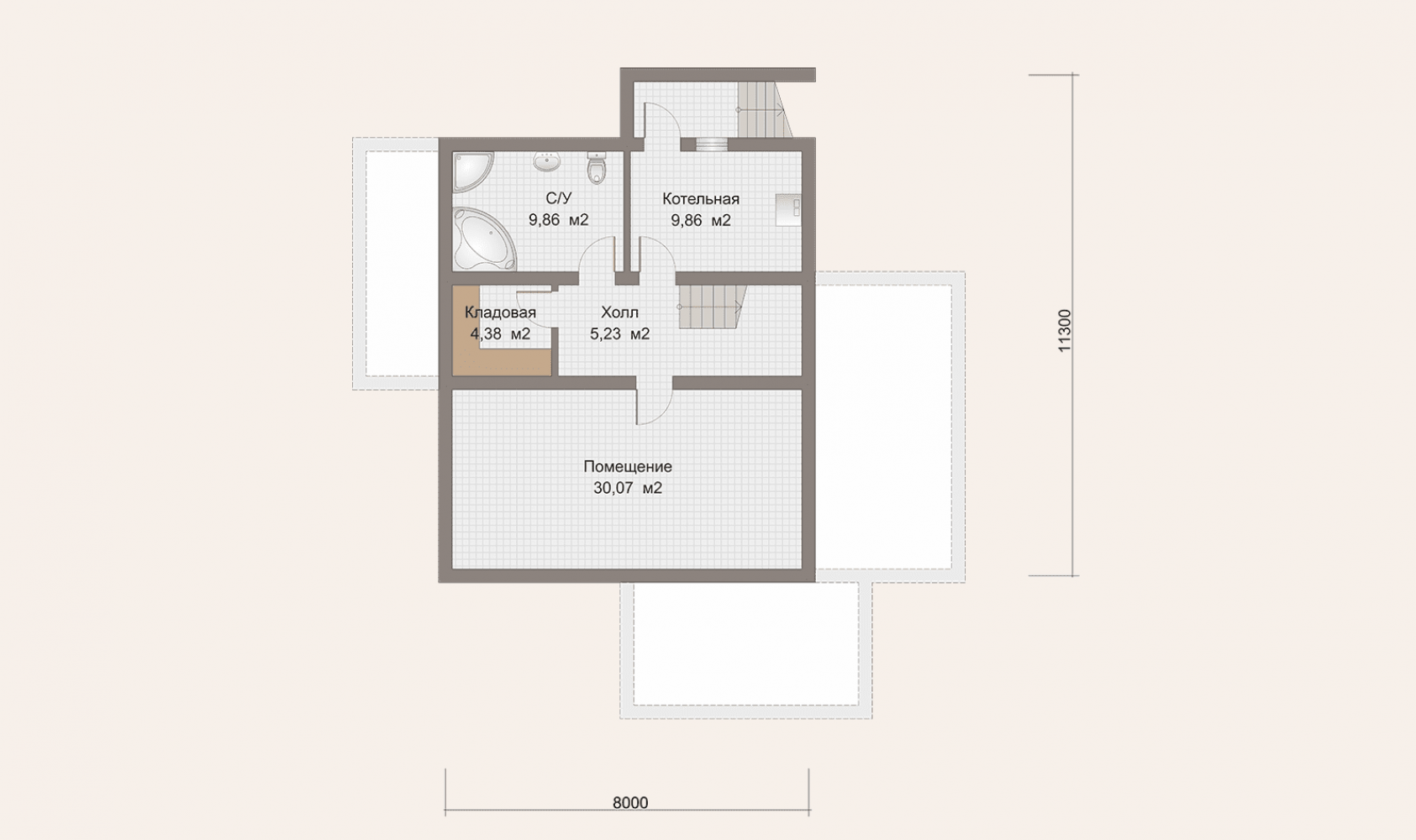

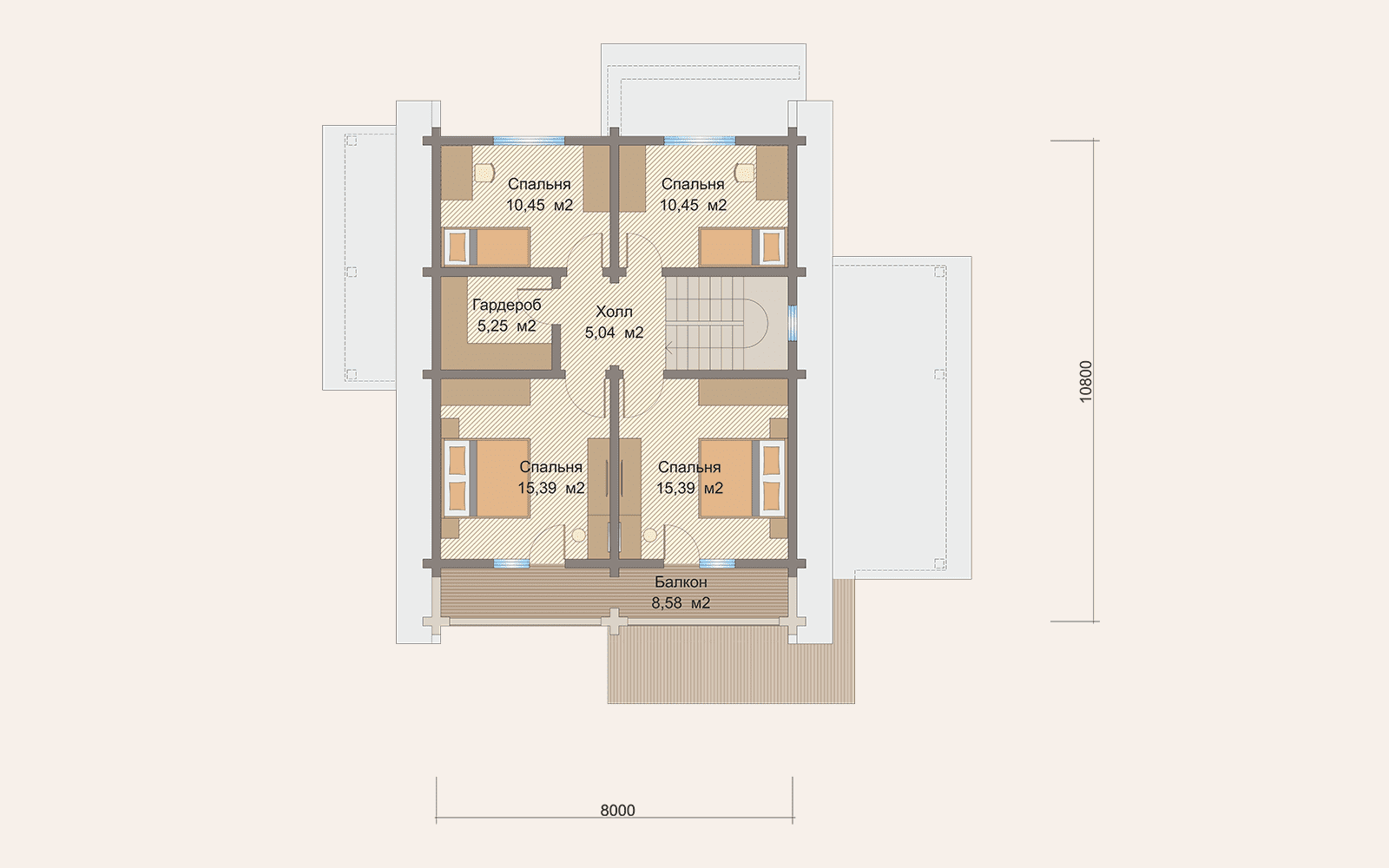

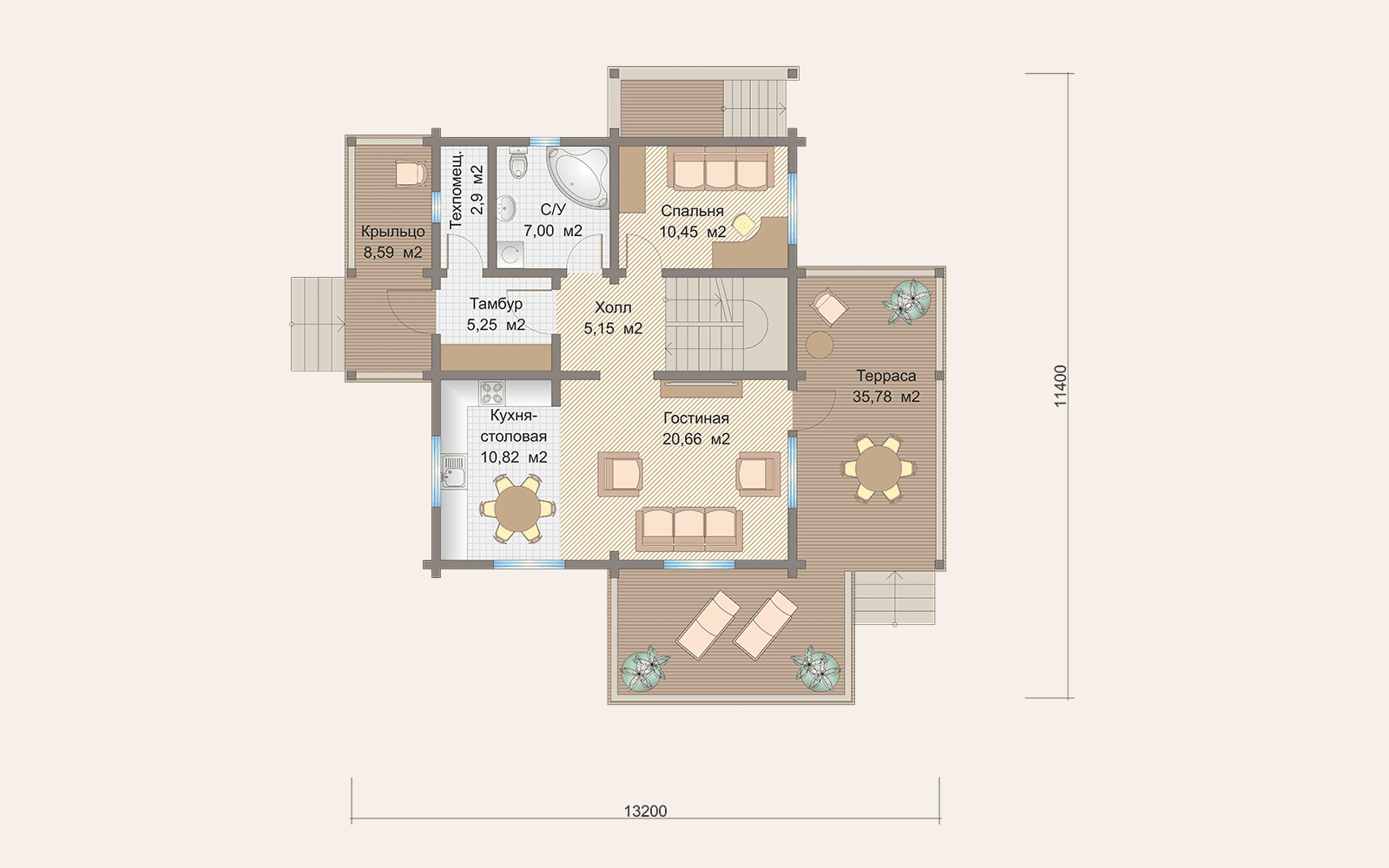

Ground floor 1st floor 2nd floor
|
Hall |
5,32 m2 |
Hall |
5,15 m2 |
Hall |
5.04 m2 |
|
Storeroom |
4.38 m2 |
Living room |
20.66 m2 |
Wardrobe |
5,25 m2 |
|
Boiler room |
9.88 m2 |
Bedroom |
10.45 m2 |
Bedroom |
15.39 m2 |
|
Bathroom |
9.88 m2 |
Kitchen-dining room |
10.82 m2 |
Bedroom |
15.39 m2 |
|
The room |
30.07 m2 |
Bathroom |
7,00 m2 |
Bedroom |
10.45 m2 |
|
Vestibule |
5,25 m2 |
Bedroom |
10.45 m2 |
||
|
Those. the room |
2.90 m2 |
Balcony |
8,58 m2 |
||
|
Terrace |
35.78 m2 |
||||
|
The porch |
8,59 m2 |
Wall kit:
• Laminated timber, profiled with cups according to the project 180 mm high, 200 mm thick with protective treatment of the ends with the composition "Teknos JRM", with cutting grooves for the installation of casing boxes. The type of material is Spruce.
• Inter–shaft sealer for corner joints of timber - Rave Line, Finland;
• The embedded board is dry planed 41*200 mm. Key for installation of windows and doors – dry planed bar 30*40 mm;
• Glued posts 200*200 mm.
Floor structures (Calculation of wooden structures is made for the type of support surface - a tape monolithic foundation):
• Ceilings (floor beams, frontal board);
• Cranial block – sawn block 40*50 mm; black floor board – sawn board 16 mm.
Coating designs:
• Rafter system (rafter legs, puffs, girders, short linings);
• Counter–lattice - a block, planed 40*50 mm;
• Beacon rail – sawn bar 25*50 mm. Black ceiling board – sawn board 16 mm;
• The crate is a sawn board of 25 mm.
Structures of internal frames:
• Internal frame partitions (racks, lintels, strapping – calibrated board);
• Timber imitation board – dry profile 19*177 mm.
Exterior finishing materials:
• Cornice board – planed board 20*120 mm. External cladding for filing overhangs of the cornice – planed board 20*120 mm;
• Exterior trim for windows and doors – planed board 20*120 mm;
• Casing board – glued board 42*200 mm.
Fasteners:
• Wall mounting kit (anchors, capercaillie, adjusting screws, embedded parts, shrinkage compensators);
• A set of floor fasteners (beam supports);
• A set of cover fasteners (sliding supports, bolts, studs).
